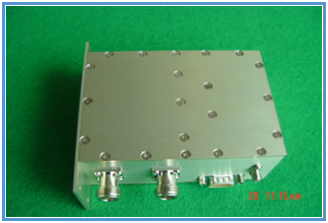

MODEL NO : SRS 1001
|
|
|
The Model No SRS1001 of SGC RF Switch
can be used in Base Transceiver Stations (BTS), Top Tower Amplifiers (TTA) and Repeaters.
The parts serve all Portable Internet(Wi-Bro, Wi-MAX) for Wireless Broadband Access
|
|
|
|
FEATURES
|
|
- Compact Module Size
(145mm × 95mm × 50mm)
- Low Current and Voltage
- High Power Rating (60W min AVR)
- N–Female Connector
|
|
|
|
SINGLE POLE SINGLE THROW SWITCH : SPST
|
|
Parameter |
Unit |
Specification |
Remark |
|
Frequency |
MHz |
2300 ~ 2400 |
|
|
Gain |
dB |
30 |
TYPICAL |
|
Switching Speed |
uS |
6us@ 90% |
|
|
Noie Figure |
dB |
2 |
TYPICAL |
|
Control Logic |
|
TTL(5V Tx On) |
|
|
Ripple in Band |
0.5dB |
0.5 |
|
|
OIP3 |
|
36dBm @5dBm |
|
|
Path type |
|
Single |
|
|
Temp. Range |
℃ |
-30 to +60 |
|
|
Supply Voltage |
|
+8 to +20V/1A |
|
|
Switched Type |
|
Half-SPDT |
|
|
Connector Type |
|
N-Female |
|
|
|
|
HIGH POWER
RF SWITCHING LNA
|
|
|
SGC Down Converter can be used in the 2.3GHz to 2.7GHz Portable Internet (Wi-Bro, Wi-MAX) for Wireless Broadband Access and microwave markets.
|
|
|

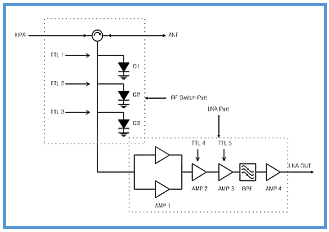

BLOCK DIAGRAM
|
MAIN FUNCTION
|
|
|
- Rx Input Over Power Alarm
- Rx Over Power 입력 시 Switch off 기능
- LNA Alarm
- Amp on/off 기능
|
SPECIFICATION
|
|
ITEM |
SPECIFICATIONS |
REMARKS |
|
Frequency Range |
2.3 GHz ~ 2.4 GHz |
BW=30MHz |
|
Gain |
40 dB or 30 dB ± 0.5 dB |
ANT → LNA Out |
|
Noise Figure |
2.0dB max |
1.8dB typ |
|
OIP3 |
35dB min |
@3dBm/tone Out |
|
Flatness |
0.5 dB max |
Peak to peak |
|
Handling Power |
60 W max |
|
|
Insertion Loss |
0.5 dB max |
0.3 dB typ. Tx path |
|
Isolation |
80 dB min |
HPA ↔ LNA Out |
|
Switching Speed |
5 ㎲ max |
@ 90% |
|
Control Logic |
TTL (Active High) |
|
|
Supply Voltage |
+6V ~ 12V / 800mA max |
Rx path |
|
VSWR |
HPA port |
1.3 : 1 max |
|
|
ANT port |
|
LNA Out port |
|
Operating Temp. |
-30 ℃ ~ +70 ℃ |
|
|
|
|
|
LOW POWER
RF SWITCHING LNA
|
|
|
SGC Down Converter can be used in the 2.3GHz to 2.7GHz Portable Internet (Wi-Bro, Wi-MAX) for Wireless Broadband Access and microwave markets.
|
|
|

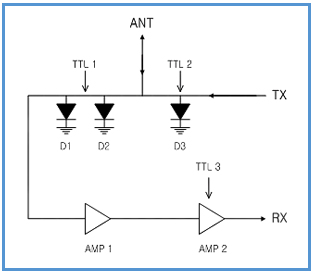

BLOCK DIAGRAM
|
MAIN FUNCTION
|
|
|
- LNA Alarm
- Amp on/off 기능
|
SPECIFICATION
|
|
ITEM |
SPECIFICATIONS |
REMARKS |
|
Frequency Range |
2.3 GHz ~ 2.4 GHz |
BW=30MHz |
|
Gain |
25 dB ± 0.5 dB |
ANT → RX @Rx path |
|
Noise Figure |
1.5dB max |
1.3dB typ |
|
OIP3 |
35dB min |
@3dBm/tone Out |
|
Flatness |
0.5 dB max |
Peak to peak |
|
Handling Power |
5 W max. |
|
|
Insertion Loss |
0.5 dB max |
0.4 dB typ. @Tx path |
|
Isolation |
55 dB min |
TX → RX @Tx path |
|
25 dB min |
ANT → TX @Rx path |
|
Switching Speed |
5 ㎲ max |
@ 90% |
|
Control Logic |
TTL (Active High) |
Rx path |
|
Supply Voltage |
+6V ~ 12V / 300mA max |
Rx path |
|
VSW R |
ANT port |
1.3 : 1 max |
|
|
TX port |
|
RX port |
|
Operating Temp |
-30 ℃ ~ +70 ℃ |
|
|
|
|
|
DIVERSITY 용
RF SWITCHING LNA
|
|
|
SGC Down Converter can be used in the 2.3GHz to 2.7GHz Portable Internet (Wi-Bro, Wi-MAX) for Wireless Broadband Access and microwave markets.
|
|
|

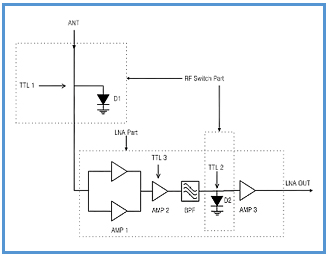

BLOCK DIAGRAM
|
MAIN FUNCTION
|
|
|
-
Rx Input Over Power Alarm
-
Rx Over Power 입력 시 Switch Off 기능
- LNA Alarm
- Amp on/off 기능
|
SPECIFICATION
|
|
ITEM |
SPECIFICATIONS |
REMARKS |
|
Frequency Range |
2.3 GHz ~ 2.4 GHz |
BW = 30 MHz |
|
Gain |
30dB ± 0.5dB |
ANT → LNA OUT |
|
Noise Figure |
2.0dB max |
1.5dB typ |
|
OIP3 |
35dB min |
@3dBm/tone Out |
|
Flatness |
0.5 dB max |
|
|
Control Logic |
TTL (Active High) |
Path On |
|
Isolation |
50dB min |
Path off 시 |
|
Switched Type |
SPST |
|
|
Switching Speed |
5 ㎲ max |
@ 90% |
|
Handling Power |
5W max |
|
|
Supply Voltage |
+6V ~ +12V / 650mA max |
|
|
V S W R |
ANT port |
1.3 max |
|
|
LNA Out port |
|
Operating Temp |
-30 ℃ ~ +70 ℃ |
|
|
|
|
|
LOW POWER SPDT
RF SWITC
|
|
|
SGC Down Converter can be used in the 2.3GHz to 2.7GHz Portable Internet (Wi-Bro, Wi-MAX) for Wireless Broadband Access and microwave markets.
|
|
|
BLOCK DIAGRAM
|
|
|
SPECIFICATION
|
|
Item |
Specification |
Remark |
| Frequency Range |
2.3 GHz ~ 2.4 GHz |
BW = 30 MHz |
| Insertio n Loss |
COM ↔ RF1 |
1.0 dB max |
0.8 dB Type |
| COM ↔ RF2 |
| VSWR |
COM port |
1.3 max |
RF On 시 적용 |
| RF1 port |
| RF2 port |
| Isolation |
80 dB min |
RF1 ↔ RF2 |
| Switching Time |
5 ㎲ max |
@ 90% |
| Supply Voltage |
+6V ~ 12V / 300mA max |
|
| Handling Power |
5W max |
|
| Operating Temp |
-30 ℃ ~ +70 ℃ |
|
| Dimension |
89 * 60 *20 |
W * D * H |
|
|
|
|
HIGH POWER RF SWITCHING
LNA + DOWN CONVERTER
|
|
|
SGC Down Converter can be used in the 2.3GHz to 2.7GHz Portable Internet (Wi-Bro, Wi-MAX) for Wireless Broadband Access and microwave markets.
|
|
|

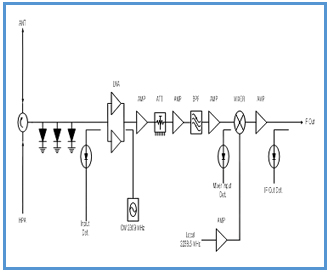

BLOCK DIAGRAM
|
|
|
SPECIFICATION
|
|
ITEM |
SPECIFICATIONS |
REMARKS |
|
Frequency Range (RF) |
2.300 GHz ~ 2.327 GHz |
SK 지정 주파수 |
|
IF Frequency |
75 MHz |
|
|
Local (2238.5MHz) 입력 |
- 3 dBm ± 1dB |
|
|
Gain |
40 dB ± 0.5 dB |
ANT → IF Out |
|
Noise Figure |
2.0dB max |
1.8dB typ |
|
OIP3 |
35dB min |
|
|
Flatness |
0.5 dB max |
Peak to peak |
|
Handling Power |
60 W max |
|
|
Insertion Loss |
0.5 dB max |
HPA → ANT |
|
Isolation |
100 dB min |
HPA ↔ IF Out @RX off |
|
Switching Speed |
5 ㎲ max |
@ 90% |
|
Control Logic |
TTL (Active Low) |
RX Path |
|
Supply Voltage |
+6V ~ +12V / 1.5A max |
Rx Path |
|
CW Frequency |
2309 MHz → 70.5 MHz |
|
|
CW Level |
-10 dBm ± 1dB |
외부 Level 조정가능 |
|
VSW R |
HPA port |
1.3 : 1 max |
|
|
ANT port |
|
IF Out port |
|
Operating Temp |
-30 ℃ ~ +70 ℃ |
|
|
Dimension |
127 * 165 * 32 |
|
|
|
|
|
|
|
