Frequency  Synthesizer


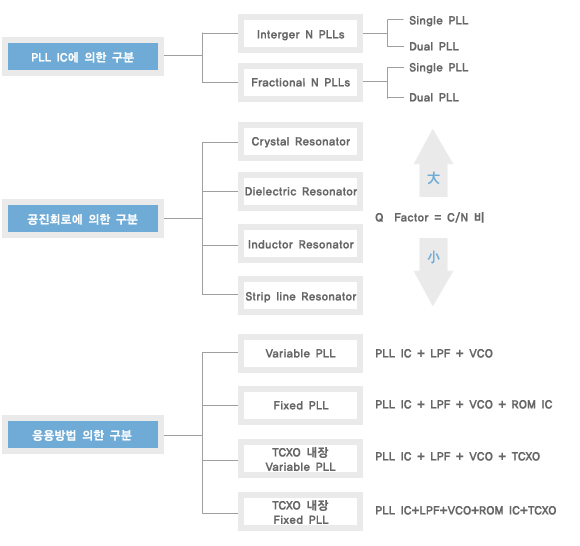

Frequency  Synthesizer Package



NO

PACKAGE

FREQUENCY RANGE

STRUCTURE

SIZE

1

A Type

30 to 2800 MHz
VCO + PLL IC (LMX 1511, LMX 2325)
19 X 19 X 6.5t

2

B Type

140 to 2000 MHz
VCO + PLL IC (LMX 1511, LMX 2325)
19 X 19 X 6.5t

3

C Type

70 to 2500 MHz
VCO + PLL IC (LMX 1511, LMX 2325)
15 X 15 X 5.0t

4

D Type

50 to 2800 MHz
VCO + PLL IC (LMX 1511, LMX 2325)+ ROM IC
19 X 19 X 6.5t

5

E Type

30 to 2800 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118)
19 X 19 X 6.5t

6

F Type

50 to 2800 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118)+ ROM IC
19 X 19 X 6.5t

7

G Type

70 to 2500 MHz
VCO + PLL IC (LMX 2306, LMX 2326)+TCXO
19 X 19 X 6.5t

8

H Type

70 to 2200 MHz
VCO + PLL IC (LMX 2306, LMX 2326)+ ROM IC+TCXO
19 X 19 X 6.5t

9

J Type

70 to 2500 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118)
15 X 15 X 5.0t

10

EL Type

70 to 2500 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118)
30 X 29 X 8.5t

11

FL Type

70 to 2500 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118) + ROM IC
30 X 29 X 8.5t

12

HL Type

70 to 2500 MHz
VCO + PLL IC (LMX 2306, LMX 2326, ADF 4118) + ROM IC +TCXO
30 X 29 X 8.5t

13

M Type

2000 to 5800 MHz
Doubler VCO + PLL IC (LMX 2326, ADF 4118)(ļä)
19 X 19 X 6.5t

14

N Type

2000 to 5800 MHz
Doubler VCO + PLL IC (LMX 2326, ADF 4118)+ROM IC(ä)
19 X 19 X 6.5t

15

S Type

700 to 2800 MHz
VCO + PLL IC (LMX 2326, ADF 4118)
9.8 X 9.3 X2.5t

16

EV Type

8 to 500 MHz
VCXO + PLL IC (LMX 2306, LMX 2326, ADF 4118)
19 X 19 X 6.5t

17

FV Type

8 to 500 MHz
VCXO + PLL IC (LMX 2306, LMX 2326, ADF 4118)+ ROM IC
19 X 19 X 6.5t

ELECTRICAL SPECIFICATIONS



PARAMETER

UNIT

SPECIFICATIONS

REMARKS

Freq. Range

10 2,800



Output  Level

dBm

-3 +9



Channel  Step

5 500



Reference Frequency

8 40



Phase Noise

@ 10KHz offset

dBc/Hz

-100 Typ

B.W=1Hz

@ 100KHz offset

dBc/Hz

-120 Typ

B.W=1Hz

Harmonics ( 2nd, 3rd, )

dBc

-20 Max



Output Impedance

50 Typ



Lock Time

msec

1 30



Supply Voltage

VCO Vcc

V

5±0.25



PLL Vcc

V

5±0.25



Current

40 max.

VCO+PLL

Storage Temperature

-40 +85



Operating Temperature

-30 +80



* All of above characteristics can be modified as per user's request
