Features |
Applications |
- High Frequency selectivity
- High Q
|
- Reference signal oscillators
- Codeless phone , Wireless LAN , DRO
|
Appearance |
Part Numbering |
|
SR - K - 030 - 1355 - Q
1
2
3
4
5
|
1. SGC Resornator type (tem mode)
2. Er ( K : 92 , J : 38 , H : 21 …… )
3. Square Meter ( 6/mm / 3mm / 2mm)
4. Center Frequency
5. Resornator wave length( Q : λ / 4 , H : λ / 2 )
|

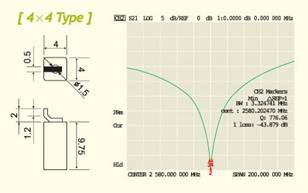

Dimension & Typical Characteristics |

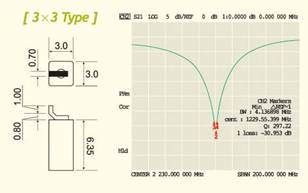

Dimension & Typical Characteristics |
|
|
|
|
|
SPECIFICATIONS
|
|
|
MATERIAL
SERIES
|
Er |
τ f ppm/ ℃ |
SQUARE
METER
|
RESONATOR
WAVE LENGTH
|
REQUENCY
RANGE (MHz)
|
Q min
(approximately)
|
K |
92 |
3 ±3 |
030 |
λ / 2, λ/ 4 |
700 ~ 1600 |
200 |
040 |
λ / 2, λ/ 4 |
600 ~ 1800 |
250 |
060 |
λ / 2, λ/ 4 |
440 ~ 2200 |
300 |
080 |
λ / 2, λ/ 4 |
400 ~ 2300 |
600 |
J |
38 |
3 ±2 |
030 |
λ / 2, λ/ 4 |
1200 ~ 2000 |
350 |
040 |
λ / 2, λ/ 4 |
1000 ~ 2500 |
350 |
060 |
λ / 2, λ/ 4 |
700 ~ 3000 |
450 |
080 |
λ / 2, λ/ 4 |
700 ~ 2000 |
600 |
H |
21 |
4 ±2 |
030 |
λ / 2, λ/ 4 |
1900 ~ 3500 |
350 |
040 |
λ / 2, λ/ 4 |
1300 ~ 3500 |
370 |
060 |
λ / 2, λ/ 4 |
2200 ~ 3500 |
500 |
080 |
λ / 2, λ/ 4 |
2500 ~ 3000 |
600 |
|
|
|
|
|
|
|
|
|
|
