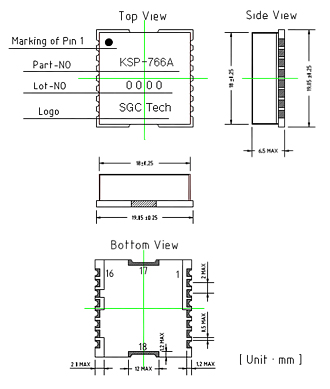

A,
E, G, M, EV
Package Mechanical
Specifications (19.05
X 19.05 X 6.5t)
|
|
|
|
|
|
Terminal
Connection
|
|
Pin
NO
|
Terminal
NAME
|
|
1
|
Clock
(CLK)
|
|
2
|
Data
|
|
3
|
Enable
(LE)
|
|
4
|
Osc.
IN
|
|
9
|
VCO
Vcc
(DC
+5V)
IN
|
|
13
|
RF
Out
|
|
15
|
PLL
Vcc
/ TCXO
(DC
+5V)
IN
|
|
16
|
Lock
Detect
(LD)
|
|
5,
6, 7,
8, 10,
11,
12,
14,
17,
18 :
Ground
Pins
|
|
|
A,
E, G Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-060SA |
60.0 |
5 ± 0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-115dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-065SA |
65.0 ± 2.5 |
5 ± 0.25 |
5±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-115dBc/㎐
@10㎑ offset |
≤-17dBc |
|
KSP-070SA |
70.0 ± 2.5 |
5 ± 0.25 |
10±2dB m |
≤40㎃ |
30mse c |
10KHz |
≤-115dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-073SA |
73.728 |
5 ± 0.25 |
5±2dBm |
≤40㎃ |
30mse c |
8KHz |
≤-115dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0106A |
105.7 ± 5 |
5 ± 0.25 |
0±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0168A |
168 ± 10 |
5 ± 0.25 |
3±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0255A |
255 ± 15 |
5 ± 0.25 |
0±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0295A |
295 ± 20 |
5 ± 0.25 |
5±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0441A |
441 ± 3 |
5 ± 0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0722A |
721.5 ± 10 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0757A |
756.5 ± 27.5 |
5 ±0.25 |
4±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-103dBc/㎐
@10㎑ offset |
≤-25dBc |
|
KSP-0760A |
760 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0769A |
769.04 ± 5 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
A,
E, G Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-0770A
|
770
±
10
|
5 ± 0.25 |
0±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0771A
|
771
±15
|
5 ± 0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
25KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0776A
|
766
±
13
|
5 ± 0.25 |
5±2dBm
|
≤40㎃ |
30mse c |
30KHz
|
≤-105dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0805A
|
805
±
10
|
5 ± 0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
50KHz
|
≤-105dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0811A
|
811.5
±
12.5
|
5 ± 0.25 |
7±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0882A
|
882
±
10
|
5 ± 0.25 |
5±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0904A
|
904
±
22.5
|
5 ± 0.25 |
4±2dBm
|
≤40㎃ |
30mse c |
50KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0945A
|
945
±
10
|
5 ± 0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
25KHz
|
≤-105dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0955A
|
955
±
15
|
5 ± 0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0952A
|
951.5
±
27.5
|
5 ±0.25 |
4±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-103dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-0997A
|
996.5
±
10
|
5 ±0.25 |
5±2dBm
|
≤40㎃ |
30mse c |
10KHz
|
≤-100dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-1537A
|
1537
±
10
|
5 ±0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
50KHz
|
≤-105dBc/㎐@10㎑
offset
|
≤-20dBc |
|
KSP-1655A
|
1655
±
10
|
5 ±0.25 |
3±2dBm
|
≤40㎃ |
30mse c |
50KHz
|
≤-105dBc/㎐@10㎑
offset
|
≤-20dBc |
|
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
A,
E, G Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-1690A |
1690 ± 5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-110dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1715A |
1715 ± 22.5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1740A |
1740 ± 30 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1750A |
1750 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1790A |
1790 ± 25 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1790A |
1790 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1790A |
1790.25 ± 5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1795A |
1795 ± 35 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1810A |
1810 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1858A |
1857.5 ± 7.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1868A |
1868 ± 10 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1880A |
1880 ± 40 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1881A |
1880.25 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
| *
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
A,
E, G Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-1895A |
1895 ± 25 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1900A |
1900 ± 10 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1907A |
1907 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1950A |
1950 ± 35 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1980A |
1980 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2020A |
2020 ± 30 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
200KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2025A |
2025 ± 20 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
200KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2045A |
2045 ± 40 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2065A |
2065 ± 20 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
200KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2079A |
2079 ± 10 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2090A |
2090 ± 10 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2097A |
2097 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2100A |
2100 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
A,
E, G Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-2140A |
2140 ± 35 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2160A |
2160 ± 10 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2188A |
2187.5 ± 7.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2210A |
2210.25 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2295A |
2295 ± 35 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2300A |
2300.25 ± 5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2545A |
2545 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2643A |
2642.5 ± 5 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2745A |
2745 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-3300A |
3300 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-97dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-3500A |
3500 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-97dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-4900A |
4900 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-97dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-5800A |
5800 ± 30 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-95dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
|

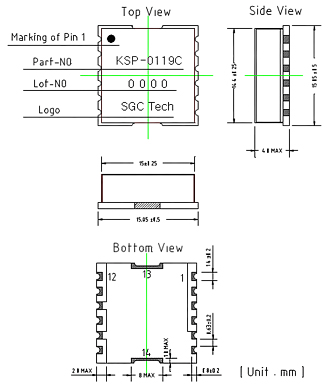

C,
J
Package Mechanical
Specifications (15.05
X 15.05 X 4.0t)
|
|
|
|
|
|
Terminal
Connection
|
|
Pin
NO
|
Terminal
NAME
|
|
1
|
Clock
(CLK)
|
|
2
|
Data
|
|
3
|
Enable
(LE)
|
|
4
|
Osc.
IN
|
|
7
|
VCO
Vcc
(DC
+5V)
IN
|
|
9
|
RF
Out
|
|
11
|
Lock
Detect
(LD)
|
|
12
|
PLL
Vcc
(DC
+5V)
IN
|
|
5,
6, 8,
10,
13,
14 :
Ground
Pins
|
|
|
C,
J Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-0100C |
100 ±3 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0119C |
119 ±10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0135C |
135 ±5 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-15dBc |
|
KSP-0145C |
145 ±10 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-15dBc |
|
KSP-0365C |
365 ±10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0744C |
744 ±3 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-30dBc |
|
KSP-0760C |
760 ±5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0765C |
765 ±10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0770C |
770 ±5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0776C |
776 ±5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0795C |
795 ±10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0805C |
805 ±10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0815C |
815 ±5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
C,
J Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-0910C |
910 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0930C |
930 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0955C |
955 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-15dBc |
|
KSP-1039C |
1039 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
500KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-30dBc |
|
KSP-1685C |
1685 ± 10 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
13MHz/
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1690C |
1690 ± 10 |
5 ±0.25 |
4±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1715C |
1715 ± 5 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
50KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1748C |
1747.5 ± 7.5 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1828C |
1827.5 ± 7.5 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1908C |
1907.5 ± 7.5 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1920C |
1920 ± 10 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1925C |
1925 ± 10 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
13MHz/
25KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
|

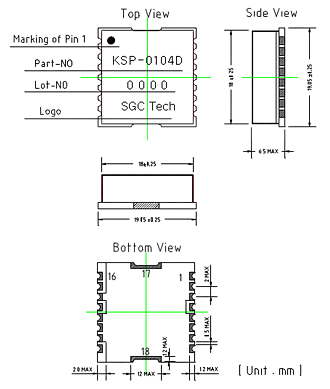

D,
F, N, H, FV
Package Mechanical
Specifications (19.05
X 19.05 X 6.5t)
|
|
|
|
|
|
Terminal
Connection
|
|
Pin
NO
|
Terminal
NAME
|
|
4
|
Osc.
IN
|
|
9
|
VCO
Vcc(DC
+5V)
IN
|
|
13
|
RF
Out
|
|
15
|
PLL
Vcc
/ ROM
IC /
TCXO
(DC
+5V)
IN
|
|
16
|
Lock
Detect
(LD)
|
|
1,
2, 3,
5, 6,
7, 8,
10,
11,
12,
14,
17,
18 :
Ground
Pins
|
|
|
D,
F, H Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-0104D |
104.19 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0139D |
139.2 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0149D |
149.2 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0158D |
158.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0240D |
240.0 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0300D |
300.0 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0470D |
470.0 |
5 ±0.25 |
- 2±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0744D |
744.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0760D |
760.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0813D |
812.9 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0830D |
830.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-0945D |
945.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1017D |
1017.9 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
D,
F, H Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-1035D |
1035.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1685D |
1685.0 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1690D |
1690.0 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1695D |
1695.0 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1887D |
1887.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1899D |
1899.0 |
5 ±0.25 |
0±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1907D |
1907.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1915D |
1915.0 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1920D |
1920.0 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1925D |
1920.0 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1960D |
1960.0 |
5 ±0.25 |
1±2dBm |
≤40㎃ |
20mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2055D |
2055.0 |
5 ±0.25 |
1±2dBm |
≤40㎃ |
20mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2090D |
2090.0 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
- |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
|

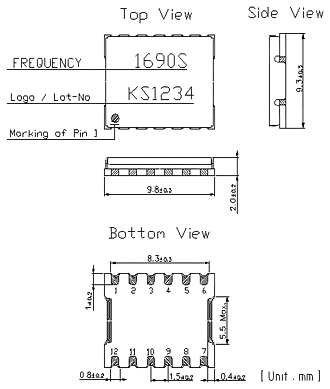

S
Package Mechanical
Specifications (9.8
X 9.3 X 2.0t)
|
|
|
|
|
|
Terminal
Connection
|
|
Pin
NO
|
Terminal
NAME
|
|
1
|
Lock
Detect
(LD)
|
|
2
|
DO
IF
|
|
3
|
Fin
IF
|
|
4
|
VCO
Vcc
(DC
+5V)
IN
|
|
5
|
PLL
Vcc
(DC
+5V)
IN
|
|
6
|
RF
Out
|
|
7
|
GND
|
|
8
|
LE
|
|
9
|
DATA
|
|
10
|
CLOCK
|
|
11
|
GND
|
|
12
|
Osc.
IN
|
|
|
S
Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
0776S |
776 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
0815S |
815 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
0910S |
910 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
0955S |
955 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
10KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1039S |
1039 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1685S |
1685 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1690S |
1690 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1715S |
1715 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1828S |
1827.5 ± 7.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1908S |
1907.5 ± 7.5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
1920S |
1920 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
100KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
2020S |
2020 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
2210S |
2210 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
|
|

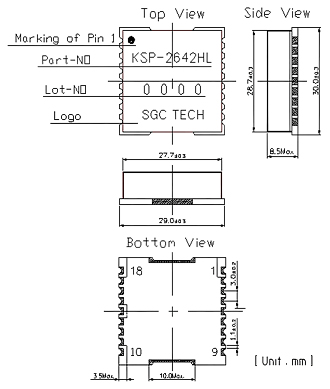

EL,
FL, HL
Package Mechanical
Specifications (30
X 29 X 8.5t)
|
|
|
|
|
|
Terminal
Connection
|
|
Pin
NO
|
Terminal
NAME
|
|
1
|
PLL
Vcc
(DC
+5V)
IN
|
|
11
|
VCO
Vcc
(DC
+5V)
IN
|
|
15
|
RF
Out
|
|
19
|
Lock
Detect
(LD)
|
|
1,
2, 3,
5, 6,
7, 8,
10,
11,
12,
14,
17,
18 :
Ground
Pins
|
|
|
EL,
FL, HL Type Electrical
Specifications
|
|
Model |
Freq. Range
(MHz) |
Supply
Voltage(V) |
Output
Level |
Current |
Lock
Time |
Channel
Step |
C/N
(Phase Noise) |
Harmonics
( 2nd, 3rd) |
|
KSP-1690EL |
1690 ± 5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-110dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1750EL |
1750 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1895EL |
1895 ± 25 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1950EL |
1950 ± 35 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-1980EL |
1980 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2065EL |
2065 ± 20 |
5 ±0.25 |
2±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2079EL |
2079 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2090EL |
2090 ± 10 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2097EL |
2097 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2100EL |
2100 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2188EL |
2187 ± 10 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2210EL |
2210 ± 5 |
5 ±0.25 |
3±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-105dBc/㎐
@10㎑ offset |
≤-20dBc |
|
KSP-2643EL |
2642.5 ± 5 |
5 ±0.25 |
5±2dBm |
≤40㎃ |
30mse c |
250KHz |
≤-100dBc/㎐
@10㎑ offset |
≤-20dBc |
*
All
of above
characteristics
can
be modified
as per
user's
request
|
|
