Applications

- JC-GC Series is a miniature antenna element Global Positioning Systems(GPS).
This patch antenna has excellent stability and sensitivity because of used ceramic material that has good electrical characteristics in microwave and patch antenna for GPS.

Appearance

Features

- Antenna dimension is as smaller than Teflon
   antenna
- Provide highly stabilized performance
- Using dielectric ceramic of high quality factor
- Low and tight temperature coefficient

Element Construction

- Type : Flat patch antenna
- Design : Rectangular microstrip antenna
- Feeding Method : Off-set one point feeding
   through ground plane
- 25mm square size

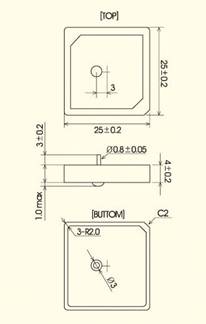

Dimension

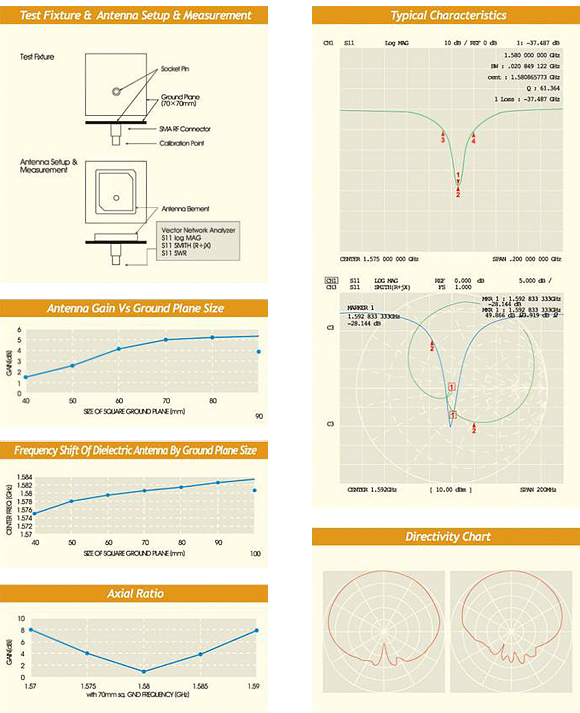

Specifications

Part Number

JC-GC1592T4-25

Outline Dimension

25mm

Ground Plane

70*70mm

Center Frequency

1592 MHz

Bandwidth

22MHz min

Impedance

50Ω

Gain@Zenith
Gain@10 ˚ Elevation

+5 dBi typical
-1 dBi typical

Temperature Coefficient

20 ppm/ ℃ max.
(-40 to ± 85 ℃ )
