WHAT's MMDS?

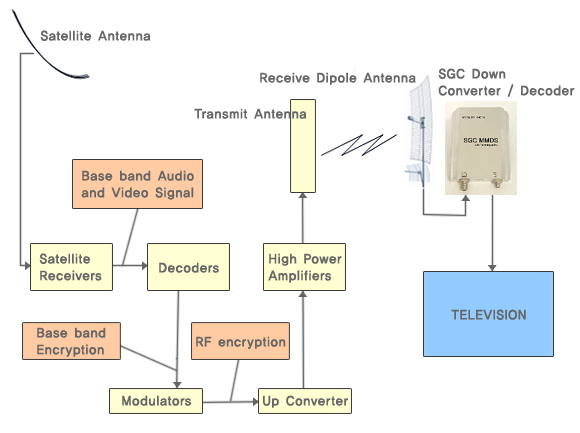

Multi channel Multipoint Distribution Service or Microwave Multipoint Distribution Service A wireless transmission system that works in the 2.5-2.76GHz range. It requires line of sight between transmitter and receiver, which can be 40 or more Kilometers apart. It was designed initially as a one-way service for bringing cable TV to subscribers in remote areas or in locations that are difficult to install cable. MMDS supports approximately 33 analog channels and more than 100 digital channels of TV.








SGC MMDS DOWN CONVERTER MODEL NO: SM2001

The model no SM2001 of SGC MMDS down converter provide the clean picture, the good quality sound by SGC Wireless solutions. Especially, it is keynote of SGC MMDS DOWN CONVERTER that a business proprietor of MMDS can control (ON/OFF) by the SGC MMDS Down converter's wireless control, between a business proprietor of MMDS and customers.



FEATURES

- Small Size (84mm × 107mm × 18mm)
- High Performance Range (40Km/semidiameter)
- Waterproof Wireless Control (By business proprietor)



ELECTRICAL PERFORMANCE

Parameters

Available Range

RF Input Frequency RF Output Frequency Local Frequency Phase Noise Maximum RF Output Level Output Impedance

2.5 to 2.7GHz 608 to 808MHz ≥-97cBc/Hz@10KHz +14dBm(Cw One Tone) 75Ω



MECHANICAL PERFORMANCE

Parameters

Available Range

Operating Temperature Humidity Ratio Housing

-30℃ to +70℃ 95% Aluminum



POWER PERFORMANCE

Parameters

Available Range

Operating Voltage Range Nominal Voltage Power Supply Requirements

DC 5.5V to 12V DC 9V (240mA) DC 9/350mA (Switching Power Supply) No DC/DC Converter
