FEATURES
|
|
|
- Customized to the need of wireless system makers.
- Low noise figure (less than 1.0dB), high linearity, single
bias
- Low price, and low current consumption.
|
|
|
|
APPLICATION
|
|
- Major applications are for IMT-2000, GSM, CDMA, AMPS,
IDEN, TRS, and WLL.
|
|
|
|
|
SPECIFICATION
|
|
PARAMETER |
SPECIFICATIONS |
|
Frequency Range |
1920MHz ~ 1980MHz |
|
2110MHz ~ 2170MHz |
|
Gain |
35dB ± 1dB |
|
Gain Flatness |
± 0.5 |
|
Noise Figure |
0.9 dB max |
|
V.S.W.R |
1.3 : 1 max |
|
OIP3 |
37dBm |
|
Impedance |
50 Ω |
|
Voltage/ Current |
8V @/ 200mA |
|
|
|
|

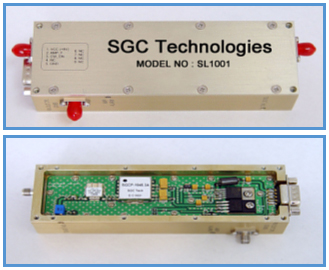

MODEL NO : SL 1001
|
|
|
|
The Model No SL1001 of SGC Low Noise Amplifier
can be used in Base Transceiver Stations (BTS), Top Tower Amplifiers (TTA) and Repeaters.
The parts serve all common mobile standards like CDMA 800, GSM 850, GSM 900, DCS 1800, PCS 1900,UMTS and Portable Internet( Wi-Bro, Wi-MAX) for Wireless Broadband Access
|
|
|
|
|
FEATURES
|
|
-
Compact Module Size
(50mm × 140mm × 30mm)
- Low Current and Voltage
|
|
|
|
|
SPECIFICATION
|
|
Parameter |
Unit |
Specification |
Remark |
|
Frequency |
MHz |
1940 ~ 1960 |
3G RX |
|
Gain |
dB |
52 |
|
|
NF |
dB |
1.2 |
|
|
Input Level |
dBm / tone |
-49 |
-46dBm/total, max |
|
Output Level |
dBm / tone |
+3 |
|
|
Ripple in Band |
0.5dB |
0.5 |
|
|
VSWR |
|
1.3 : 1 |
|
|
IP3 |
dBm |
35dBm at +3dBm/tone Out |
|
|
Output CPL |
dB |
20 |
± 0.5 dB |
|
CW Level |
MHz |
-8dBm/ 1945.3MHz |
-5 ~-10dBm |
|
Alarm |
Open Collect |
Open Collect |
|
|
Operating Temp |
°C |
-30 ~+ 70 |
|
|
|
|
|
|
|
|
|
|
|
